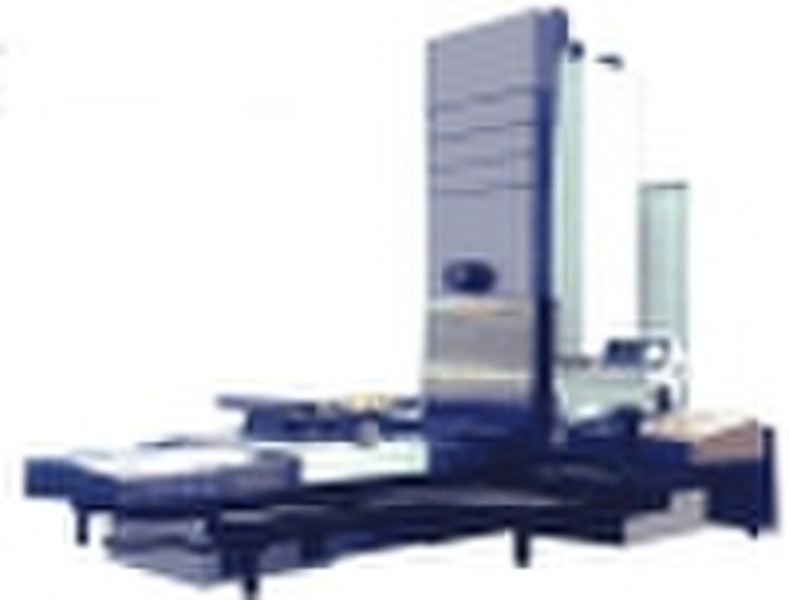

Horizontal Machining Center

Horizontal Matchiing Center Order No. 905-0040 * Gantry-twin column body. * One piece casting bed. * Vertical disc tool magazine. * NSK high precision and high regidity combination bearing. X travel (mm) 1250 Y travel (mm) 1000 Z travel (mm) 11000 Spindle end to table center(mm) 300-1400 Spindle nose to table center (mm) 70-1070 Table size (mm) 1000*1000 T slot (wide*number*distance) 22*5*200mm Max. loading 3000 Spindle motor 18.5/22kw Spindle max speed6000RPM Spindle Taper BT50 3 Axis Rapid feed speed (m/min) 15 3 Axis Cutting Speed (m/min) 0-12 Position accuracy (mm) 0.025 Table indexing accuracy: ±5"(20") Table repeatability ±1.5" (±2") Tool magazine capacity: 40 (optional 60) Max. Tool shank diameter 125 Max. Tool weight(kg) 20 Max. Tool length(mm) 400 Mchine weight 20000Kg Controller: Fanuc Oi-Mc(Optional Simense, Mitsubish, HD-500 etc.)
